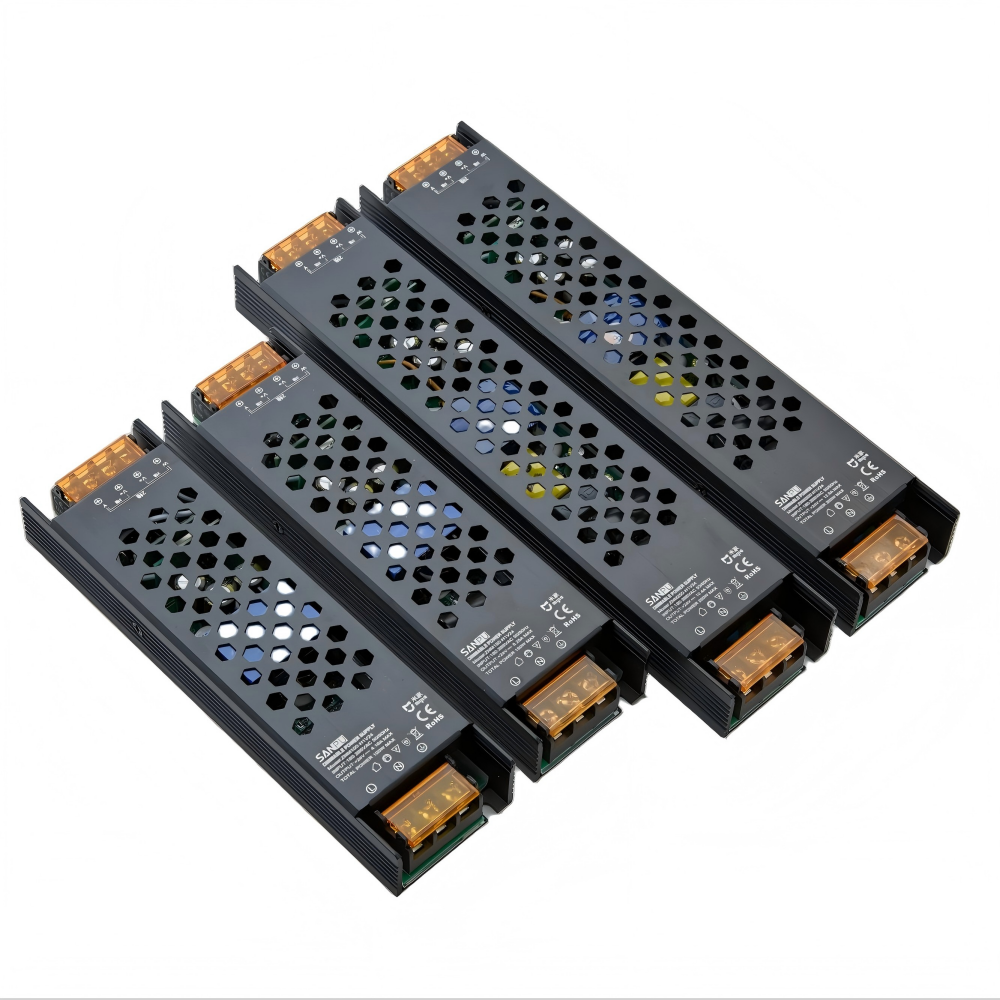

24V Mijia Dimmable Dimmable Power Supply ZNM Type. Power range from 100W to 400W, High efficiency with sufficient power
2 hours 100% full-load burn-in test before shipping; OVP, OLP, OTP, and short circuit protection programmed
Aluminum case ultra-thin; CE ROHS FCC certified
Power | 100W, 120W, 150W, 15W, 200W, 250W, 300W, 36W, 60W |
---|---|
Input | 100-240V, 175-240V |
Output | 12V, 24V, 5V |
Series No. | Power (W) | AC input (V) | DC output (V*A) | Water Level | Size(mm) | Weight (KG) | PCS/CTN | CTN Size |
---|---|---|---|---|---|---|---|---|
ZNM100-H1V24 | 100W | 175-240V | 24V | IP20 | 180*49*26 | 0.25 | 50 | 350*220*275 |
ZNM150-H1V24 | 150W | 175-240V | 24V | IP20 | 180*49*26 | 0.25 | 50 | 315*248*240 |
ZNM250-H1V24 | 250W | 175-240V | 24V | IP20 | 237*49*26 | 0.32 | 50 | 315*248*240 |
ZNM300-H1V24 | 300W | 175-240V | 24V | IP20 | 237*49*26 | 0.32 | 50 | 315*248*240 |
Slim
Ultra-Thin
Standard
Plastic
Aluminum
Rainproof
Waterproof
Dimmable
