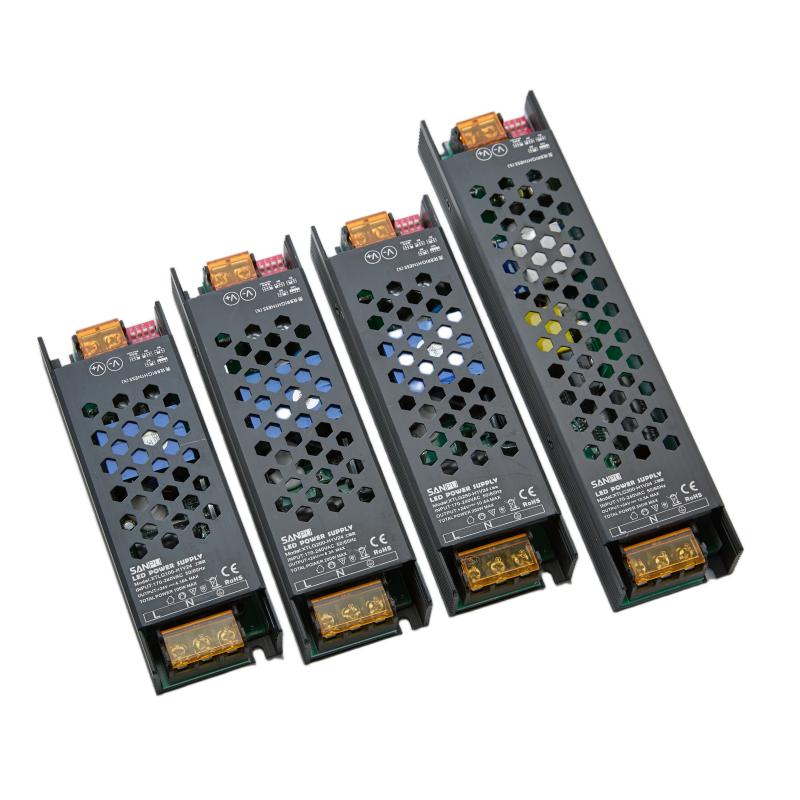

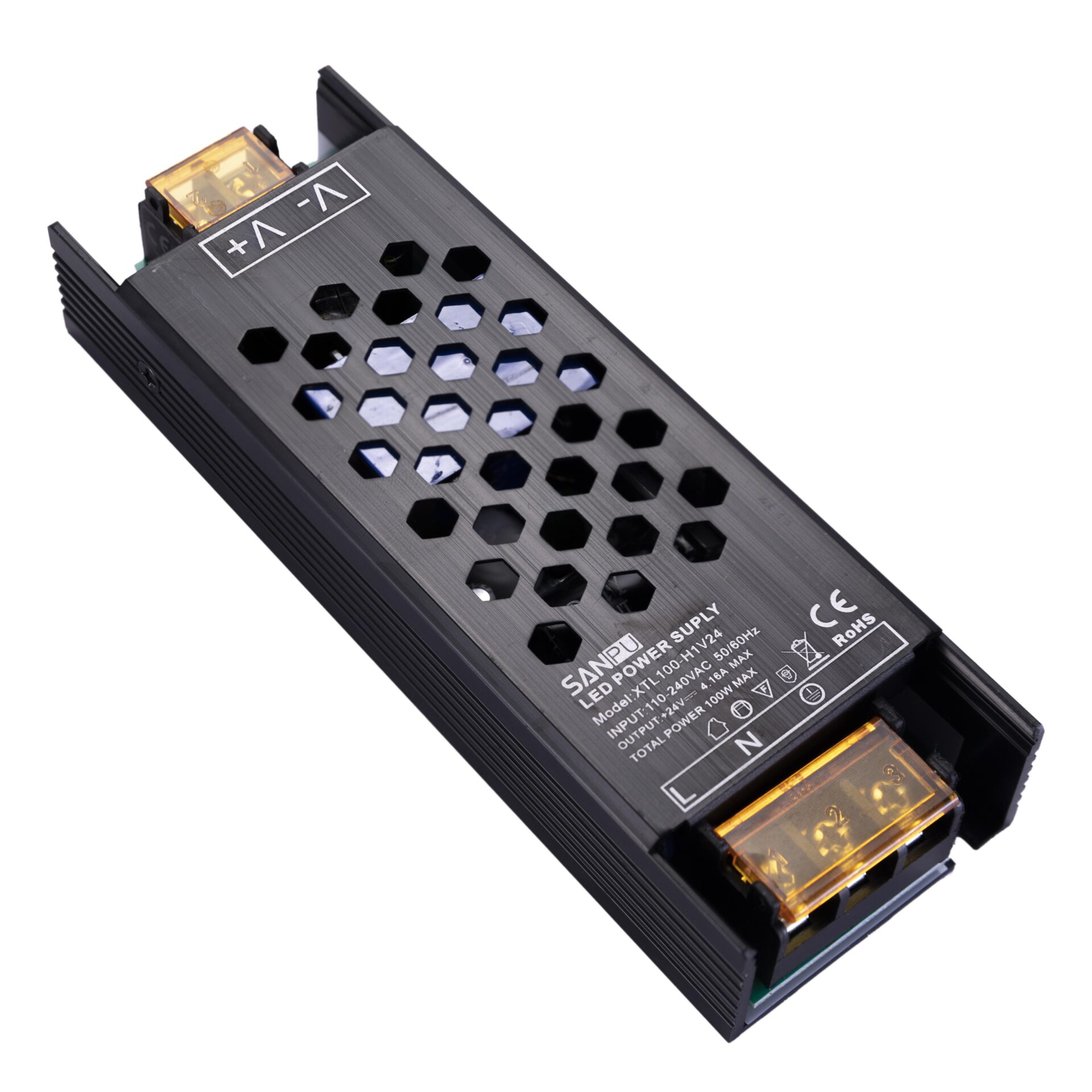

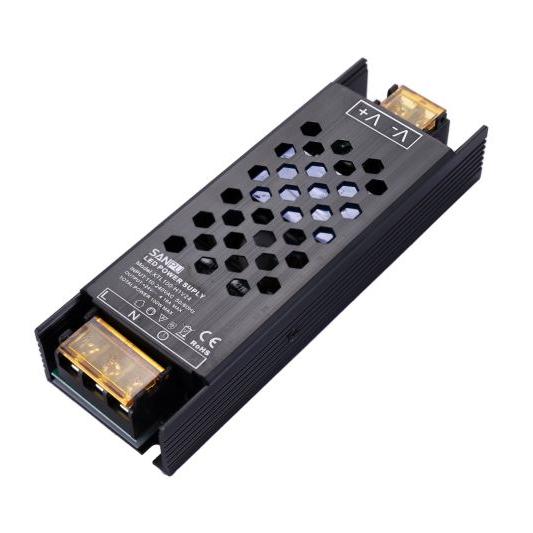

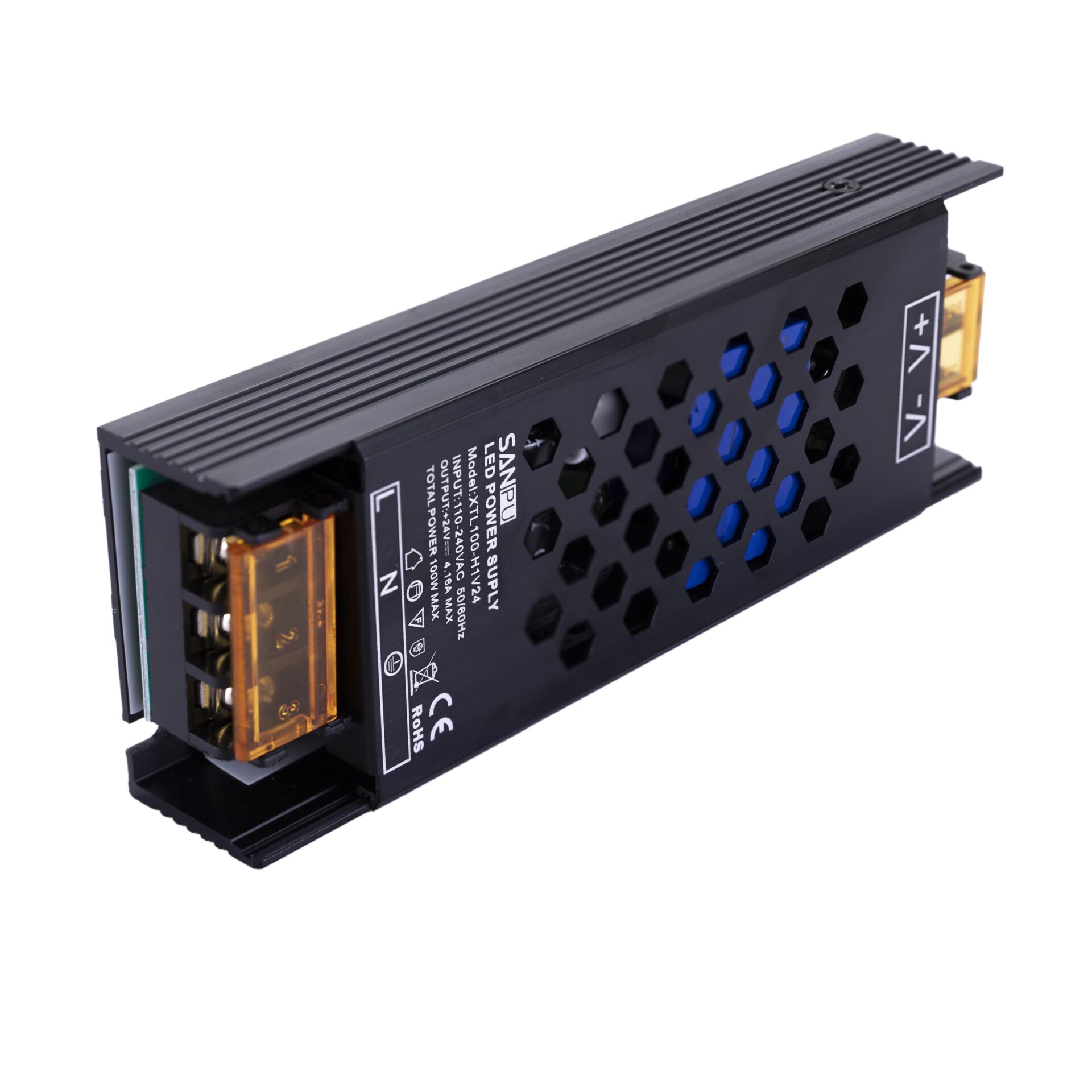

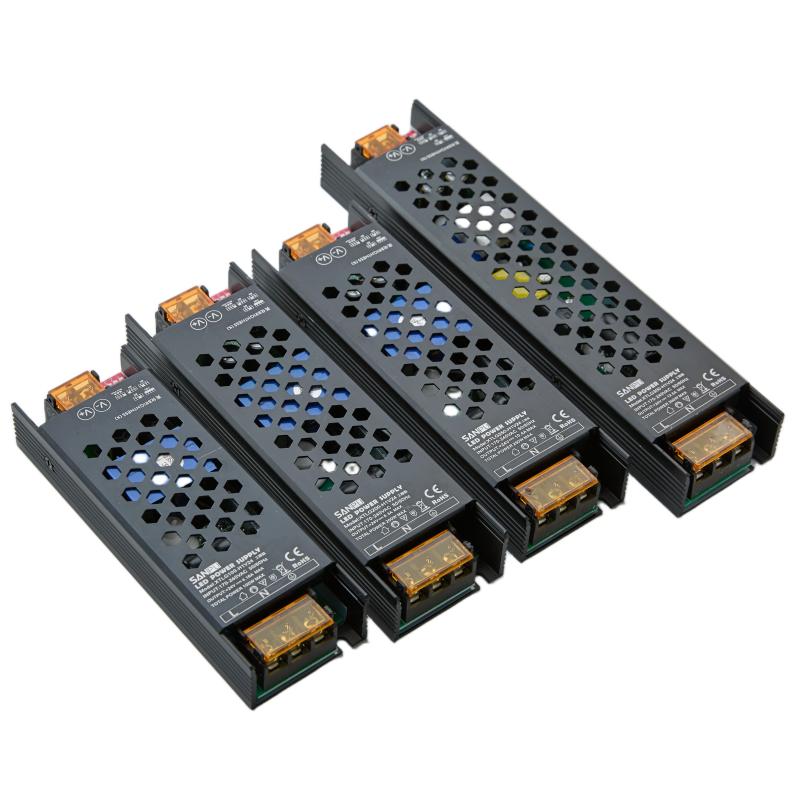

24V Slim Dip Switch LED Power Supply XTLG

SKU N/A Category Tag

24V Slim Dip Switch LED Power Supply, just 26mm thin.
Constant voltage and constant current design.
Power range: 60W to 400W.
Full-rated power with high efficiency.
Factory load aging test for reliability.
Slim, strong, and built to last.

Additional information

Power

100W, 150W, 200W, 250W, 300W, 60W, 48W, 75W

Input

175-240V

Output

24V

Product Details:

Series No.Power (W)AC input (V)DC output (V*A)Water LevelSize(mm)Weight (KG)PCS/CTNCTN Size
XTLG60-H1V60W175-240V24VIP20144*49*260.250350*220*275
XTLG60-H1V100W175-240V24VIP20144*49*260.250350*220*275
XTLG150-H1V24150W175-240V24VIP20144*49*260.250350*220*275
XTLG200-H1V200W175-240V24VIP20163*49*260.2250315*248*240
XTLG250-H1V24250W175-240V24VIP20163*49*260.2250315*248*240
XTLG300-H1V300W175-240V24VIP20215*49*260.2650315*248*240
XTLG400-H1V24400W175-240V24VIP20215*49*260.2650315*248*240
