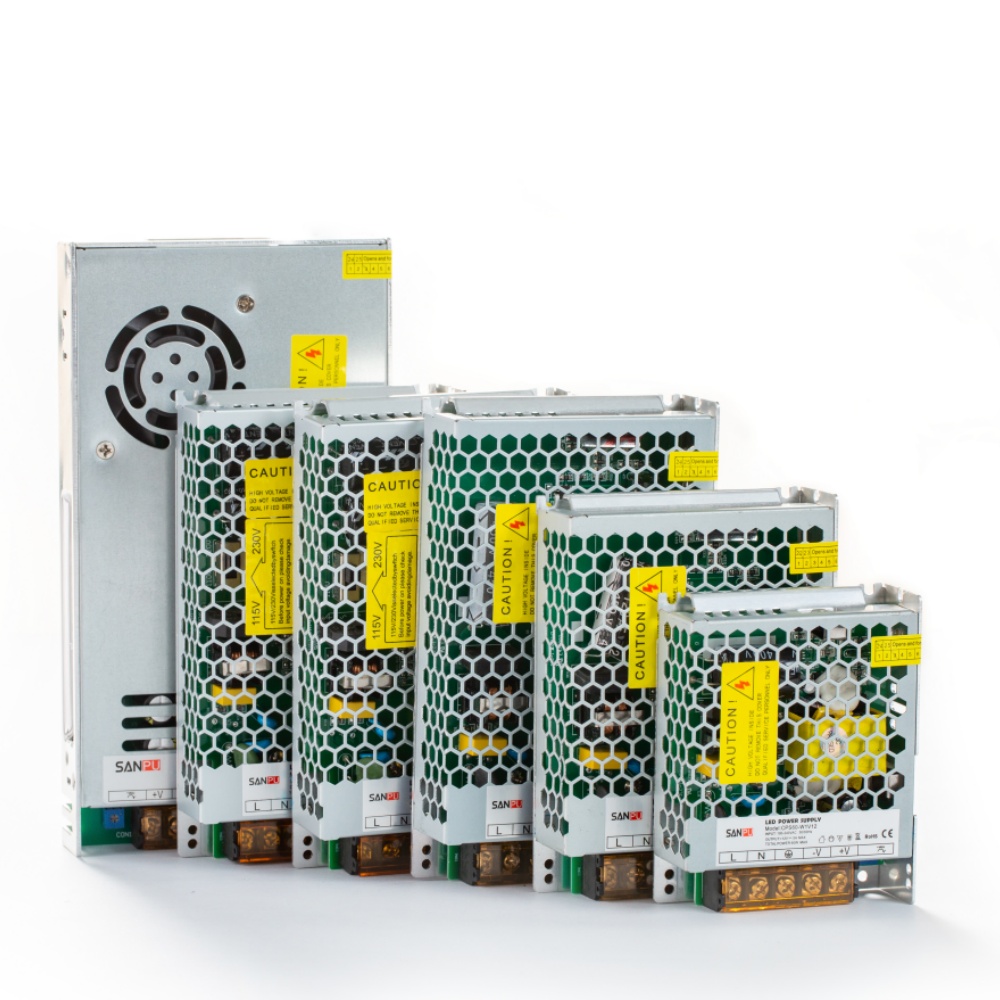

60w 12v led power supply 120v to 12v switching power supply 5a ultra thin power supply 5 amp CPS Type

ultra thin power supply

MODEL 12V 60W 24V 60W
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 5A 2.5A
CURRENT RANGE 0~5A 0~2.5A
RATED POWER 60W 60W
RIPPLE& NOISE (MAX.) 100mV 150mV
VOLTAGE TOLERANCE ±1% ±1%
SETUP, RISE TIME 500ms,30ms / 230VAC 1200ms / 115VAC at full load
HOLD UP TIME(Typ.) 50ms / 230VAC  10ms / 115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47~63Hz
POWER FACTOR(Typ.) PF>0.6/220VAC
EFFICIENCY(Typ.) 88% 89%
AC CURRENT(Typ.) 1.5A/115V 0.9A/230V
INRUSH CURRENT(Typ.) cold start 45A/230V
SHORT CIRCUIT protection type: recovers automatically after fault condition is removed
PROTECTION OVERLOAD 105~135% hiccup mode, auto-recovery
DC ADJ. RANGE ±10% rated output voltage
ENVIRONMENT WORKING TEMP –40°C~+60°C (no frost)
WORKING HUMIDITY 20%~90%RH
STORAGE TEMP, HUMIDITY –40°C~85°C/10%~95%RH
SAFETY&EMC SAFETY STANDARDS CE ROHS
WITHSTAND VOLTAGE I/P-O/P: 1.5KVAC/1min, I/P-F/G: 1.5KVAC/1min, O/P-F/G: 0.5KVAC/1min
EMC TESTING STANDARD EN55015:2006; EN61547:1995+A1:2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61347-3-13:2006
