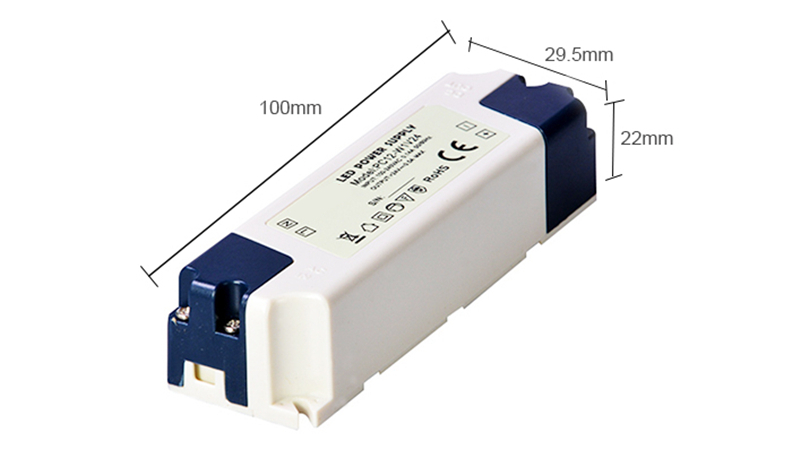

12W power supply 1a 120v to 12v switching power supply 12vdc for led light cctv camera 1 amp Plastic PC types

MODEL 12V 12W 24V 12W
OUTPUT DC VOLTAGE 12V 12V
RATED CURRENT 1A 0.5A
CURRENT RANGE 0~1A 0~0.5A
RATED POWER 12W 12W
RIPPLE& NOISE (MAX.) 120mV 120mV
VOLTAGE TOLERANCE ±1% ±1%
SETUP , RISE TIME 1000ms, 30ms/230VAC 1000ms,30ms/115VAC at full load
HOLD UP TIME(Typ.) 100ms/230VAC 20ms/115VAC at full load
INPUT VOLTAGE RANGE 85 ~ 264VAC
FREQUENCY RANGE 47~63Hz
POWER FACTOR(Typ.) PF>0.6/220VAC
EFFICIENCY(Typ.) 80% 84%
AC CURRENT(Typ.) 0.35A/115VAC 0.25A/230VAC
INRUSH CURRENT(Typ.) cold start 45A/230V
SHORT CIRCUIT protection type: recovers automatically after fault condition is removed
PROTECTION OVER LOAD 105~135% hiccup mode, auto-recovery
DC ADJ. RANGE ±10% rated output voltage
ENVIRONMENT WORKING TEMP –40°C~+60°C (no frost)
WORKING HUMIDITY 20%~90%RH
STORAGE TEMP , HUMIDITY –40°C~85°C/10%~95%RH
SAFETY&EMC SAFETY STANDARDS CE ROHS
WITHSTAND VOLTAGE I/P-O/P: 1.5KVAC/1min, I/P-F/G: 1.5KVAC/1min, O/P-F/G: 0.5KVAC/1min
EMC TESTING STANDARD EN55015:2006; EN61547:1995+A1:2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61347-3-13:2006
