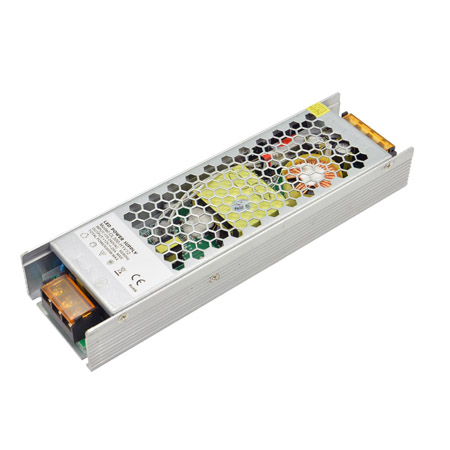

Aluminum Shell Ultra Thin Mesh Series
150w 12vdc output, 100-240vac input
led switching power supply/lighting transformer
(Package: 1 x CPS150-W1V12) Click! Wholesale 13% save!
Constant voltage switch mode power supply
1. Aluminium shells, used in LEDs fields, can be used in other areas.
2. IP20 non-waterproof, indoor use or installed in a rainproof box.
3. Ultra-thin, fanless mesh cooling design, no noise from the fan.
4. 100% full load burn-in test. Usable 0W ~ 150W, but advise 75W ~ 120W.
5. Protections: short circuit, overload, over-voltage, over temp.
| Series No. | Water Level | Size(mm) | Weight (KG) | AC input (V) | DC output (V*A) | Power (W) |
| CPS60-W1V12/24 | IP20 | 112*79*30 | 0.25 | 110-240V | 12V*5A 24V*2.5A | 60W |
| CPS100-W1V12/24 | IP20 | 130*98*30 | 0.30 | 110-240V | 12V*8.3A 24V*4.16A | 100W |
| CPS150-W1V12/24 | IP20 | 162*98*30 | 0.35 | 110-240V | 12V*12.5A 24V*6.25A | 150W |
| CPS250-H1V12/24 | IP20 | 162*98*30 | 0.48 | 175-240V | 12V*20.8A 24V*10.4A | 250W |
| CPS360-H1V12/24 | IP20 | 215*105*29.5 | 0.75 | 110V/220V | 12V*30A 24V*15A | 360W |
| CPS400-H1V12/24 | IP20 | 215*105*29.5 | 0.75 | 110V/220V | 12V*33.3A 24V*16.7A | 400W |
We have over 20 product experts with over 12 years of experience designing and assembling countless headsets, they can be your sturdy backbone.

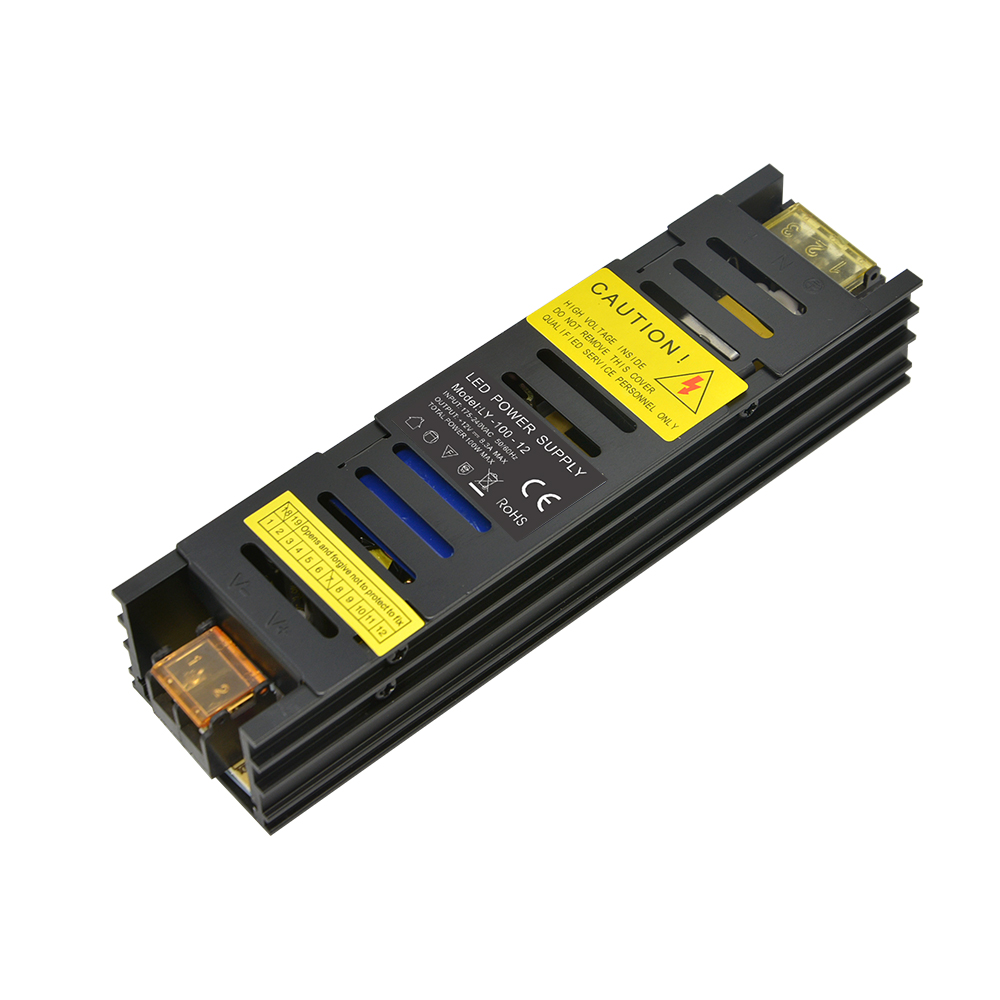

Slim
