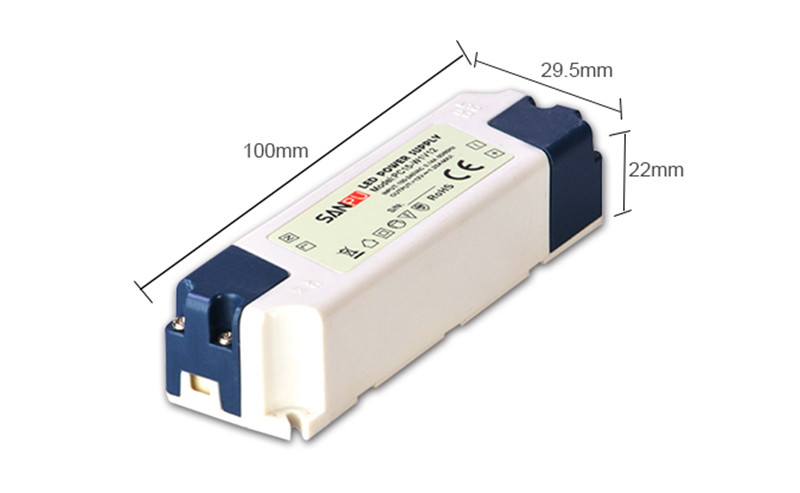

An efficient 15W power supply that converts 120V to 24V DC, ideal for LED lights and CCTV cameras. Compact Plastic PC design with 0.6A output provides reliable security and lighting system performance.
| MODEL | 12V 15W | 24V 15W | |||
| OUTPUT | DC VOLTAGE | 12V | 12V | ||
| RATED CURRENT | 1.25A | 0.63A | |||
| CURRENT RANGE | 0~1.25A | 0~0.63A | |||
| RATED POWER | 15W | 15W | |||
| RIPPLE& NOISE (MAX.) | 120mV | 120mV | |||
| VOLTAGE TOLERANCE | ±1% | ±1% | |||
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms,30ms/115VAC at full load | ||||
| HOLD UP TIME(Typ.) | 100ms/230VAC 20ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC | |||
| FREQUENCY RANGE | 47~63Hz | ||||
| POWER FACTOR(Typ.) | PF>0.6/220VAC | ||||
| EFFICIENCY(Typ.) | 80% | 84% | |||
| AC CURRENT(Typ.) | 0.35A/115VAC 0.25A/230VAC | ||||
| INRUSH CURRENT(Typ.) | cold start 45A/230V | ||||
| SHORT CIRCUIT | protection type: recovers automatically after fault condition is removed | ||||
| PROTECTION | OVERLOAD | 105~135% hiccup mode, auto-recovery | |||
| DC ADJ. RANGE | ±10% rated output voltage | ||||
| ENVIRONMENT | WORKING TEMP | –40°C~+60°C (no frost) | |||
| WORKING HUMIDITY | 20%~90%RH | ||||
| STORAGE TEMP, HUMIDITY | –40°C~85°C/10%~95%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | CE ROHS | |||
| WITHSTAND VOLTAGE | I/P-O/P: 1.5KVAC/1min, I/P-F/G: 1.5KVAC/1min, O/P-F/G: 0.5KVAC/1min | ||||
| EMC TESTING STANDARD | EN55015:2006; EN61547:1995+A1:2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61347-3-13:2006 | |||||
